SPRAY AND SPLASH WATER(WATERPROOF) TEST CHAMBER

·Features

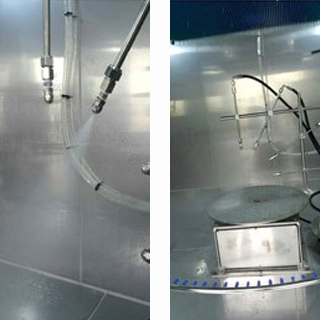

The spray and splash water test chamber is a equipment that tests whether or not waterproof standards indicated by IPX1 to 9K, such as IEC60529, ISO20653, etc., are met.
It is an equipment for evaluating water resistance due to intrusion of water and testing the reliability of samples and products through tests under various conditions that meet waterproof standards.


※ The spray and splash water test chamber has three types of appearance.

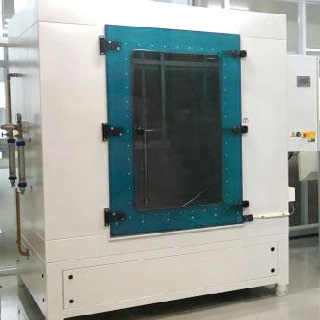

1. General Chamber Type

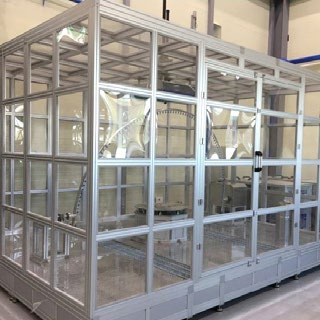

2. Walk-in Chamber Type

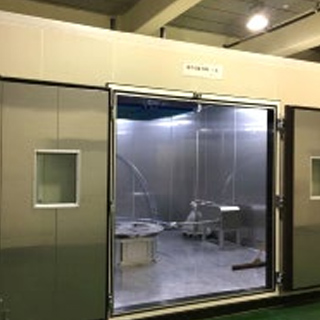

3. Room Type



General Chamber Type Walk-in Chamber Type Room Type



IPX1~4 IPX1~2 IPX3~4
IPX1~4 IPX1~2 IPX3~4



Specification
MODELSSWT Series
Internal Dimension (WxDxH)1000x1000x1000mm ~ 6000x4000x3000mm
(Large size products can be customized)
Loading Box (WxDxH)600x600x100mm ~ 2000x2000x100mm
(Large size can be customized)

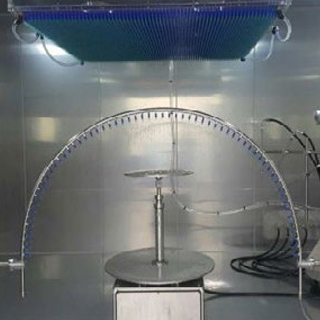

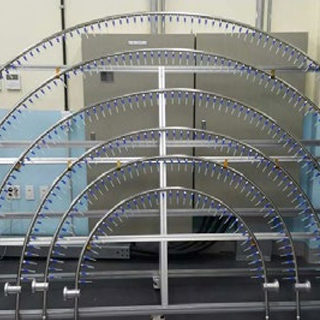

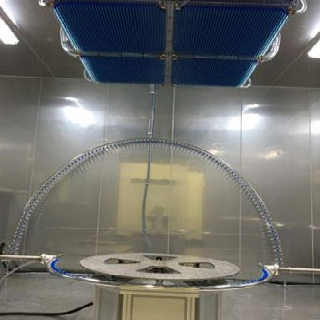

Oscillating (Swivel Tube)R-400, 600, 800, 1000, 1200, 1400, 1600 (Custom-made is possible)
Turn TableØ500 ,Ø1000, (Other size can be customized) SUS304 Lathe Processing

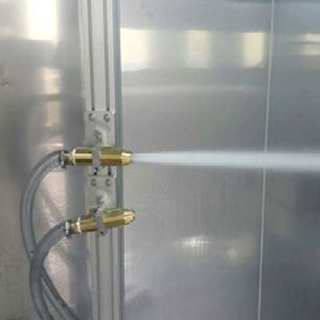

NozzleBrass
Appearance Type1. Chamber Type        2. Walk-in chamber Type        3. Room Type
ControlTouch Screen Digital Display
Applied StandardIEC60529 (IPX 1~8,9K), ISO20653,KS R 0015 (R1,R2,S1,S2)
Power SourceAC 220/380V, 3Phase , 50/60Hz
* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment.
