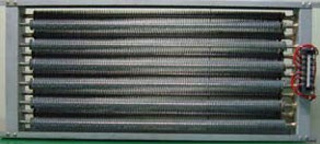

| 온도 히터 (Temperature Heater) |
타입 (Type) |  |
스테인레스 304 핀 히터 (Sealed stainless ateel SUS304 fin heaters of low watt density per surface area) |
|---|---|---|---|
| 용량 (Capadity) | 7Kw | ||
| 콘트롤 (Control) |  |

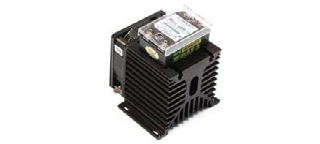

SSR (Solid State Relay) 제어 (By by SSR( Solid State Relay) Maker:Woong young(Korea) Input 4~32VDC Voltage range 90~480VAC Capacity 25A Response time Z4:8.3±1ms |
|
| 냉동시스템 (Refrigeration system) |
타입 (Type) |  |
싱클 스테이지 냉동 시스템(공냉식) Mechanical single stage refrigeration system (Air cooled condenser) |

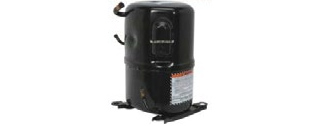

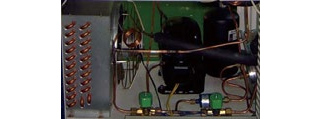

| 콤프레샤 (Compressor) |  |
고온용 밀폐 타입 Hermetic type (4HP x 1st) Maker : Copeland (USA) |
|

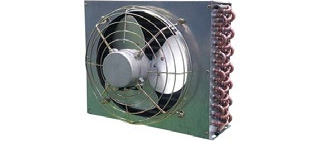

| 콘덴서 (Condenser) |  |
공냉식 (Air cooled condenser) 전열 면적 (Heat transfer area 27.35m²) 콘덴서 용량 (Condensing capacity 12,079kcal/h) Fan 400ø Motor 0.1Kw x6p |
|

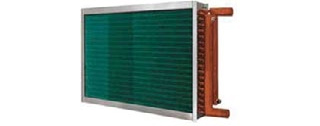

| 증발기 (Evaporator) |  |
핀 터뷸러 타입 멀티 세그먼트 로드 자동 레귤레이 션 넌 드리징 타입
(Finned tubular type multisegment load automatically regulation and non freezing during the long time running on low-temperature and high humidity) Maker: audtjdsodduf(Korea) |
|

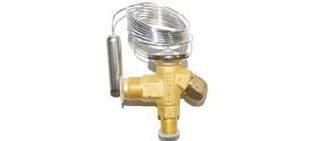

| 팽창 밸브 (Expansion valve) |  |
Danfoss (Denmark) | |

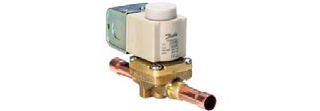

| 솔레노이드 밸브 (Solenoid valve) |
 |
Danfoss (Denmark) | |

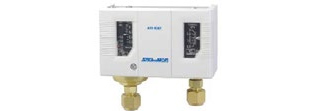

| 고압 저압 압력 스위치 (High and low Pressure limit switch) |
 |
Saginomiya(Japan) | |
| 수액기, 액분리기 (liquid receiver, liquid seperator) |
 |
Maker:Donwhawin (Korea) | |
| 냉매 (CFC free Refrigerant) | R404A | ||
| 공기 순환 (Air Circulation) |
팬 방식 (Fan type) |  |
시로코 팬 (Sirocco fan x 2Nos) |

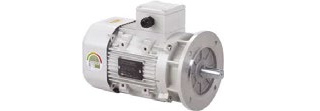

| 모터 (Motor) |  |
기어드 모터 0.75Kw 4극 (Industrial geared motor 0.75Kw 4pole Maker : SPG (Korea) Speed Max.1250r/min Torque 5500gf.cm |
|

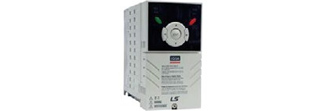

| 모터 RPM 콘트롤 (RPM control) |  |
인버터 제어 (By inverter Maker:LS (Korea) Max. Capacity 1HP (0.75Kw) Ouput rating 1.5kVA Input rating 50~60Hz) |
|

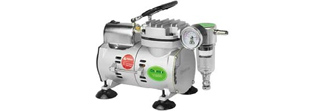

| 진공 펌프 (Vacuum pump) |
타입 (Type) |  |
드라이 진공 펌프 (Oil free vacuum pump, Piston type) |
| 펌핑 속도 (Pumping speed) |
80Liters/minute at 60Hz | ||
| 도달 진공도 (Uitimate pressure) |
20 torr | ||
| 모터 용량 (Motor Power) |
300w |
| MODEL | VT-ATHC 200 | VT-ATHC 300 | VT-ATHC 400 | VT-ATHC 500 | VT-ATHC 600 |
|---|---|---|---|---|---|
| Dimension In(WxDxH) | 600 x 600 x 700 | 700 x 600 x 750 | 740 x 740 x 740 | 800 x 800 x 800 | 800 x 900 x 1000 |
| Dimension Out(WxDxH) | 1350 x 1550 x 2000 | 1450 x 1900 x 2000 | 1490 x 2040 x 2000 | 1550 x 2100 x 2060 | 1550 x 2200 x 2300 |
| Useful Capacity (ℓ) | 252 | 345 | 405 | 512 | 720 |
| Temp. Range | -70℃ ~ +150℃ (changeable according to user’s demand) | ||||
| Temp. Accuracy | less than ± 0.3 ℃ | ||||
| Temp. Fluctuation | less than ± 0.5 ℃ | ||||
| Humi. Range | 20% ~ 98%RH (10% ~ 98%RH is an optional spec.) | ||||
| Humi. Stability | less than ± 2% RH | ||||
| Humi. Uniformity | less than ± 3% RH | ||||
| Heat-up Rate | More than 3 ℃/min | ||||
| Pull-down Rate | More than 2 ℃/min | ||||
| Max. Final vacuum | 1mbar (100pa) | ||||
| Vacuum Pump | Two stage oil rotary pump or dry pump | ||||
| Condensing | Air cooled or water cooled type | ||||
| Power Source | 220V/ 380V, 50Hz/60Hz, 1PH/3PH (Changeable according to customer specification.) | ||||
| Controller | Programmable type TFT color LCD 5.7” controller (Max. 120 patterns, Max.1,200 profile) | ||||
| Refrigerant | R404A, R23 (CFC free) | ||||
| Safety Devices | 1. Leakage Breaker 2. Circuit Breaker
3. Over Heat Protector 4. Refrigerator High/Low Pressure Switch 5. Water Low Level S/W 6. Compressor Built-in Protector 7. Pressure Relief Port 8. Electrical over current relay | ||||
| Accessories | 1. Viewing window (heater wire including, reinforced window) and interior light 2. RS232/485 oven networking With control software 3.Caster for moving 4.Oil mist trip 5.Spare parts kit 6.Instruction and maintenance manual | ||||
| Select Options | 1.Low humidity kit
2.Chart recorder
3.Port Hole 4.GN2 purge 5.Demineralization unit (RO system) 6.Customization available | ||||
| Utility | 1.Drain Line (NW 15) 2.Vent (NW15) 3.Vacuum (NW 15) | ||||
| * 기기의 성능향상을 위하여 외형 및 사양이 변경될 수 있습니다. * External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment. | |||||
